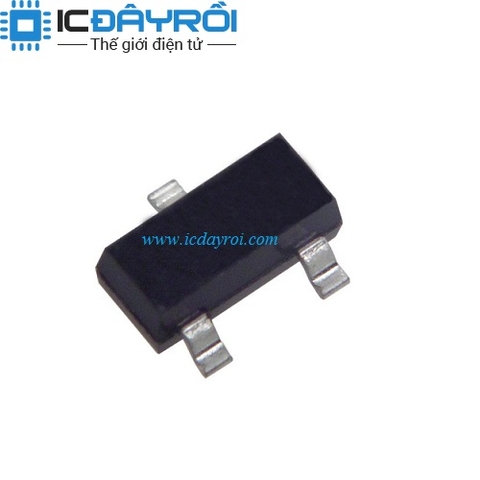

Diode zener BZX84C12 12V 1/2W
400₫
Còn hàng
Mô tả :
BZX84C12 BZX84C-C12 Y2 12V SOT23
Voltage - Zener (Nom) (Vz)
12V
Tolerance
±5%
Power - Max
350mW
Impedance (Max) (Zzt)
25 Ohms
Current - Reverse Leakage @ Vr
100nA @ 8V
Voltage - Forward (Vf) (Max) @ If
900mV @ 10mA
Operating Temperature
-55°C ~ 150°C
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
SOT-23-3...
BZX84C12 BZX84C-C12 Y2 12V SOT23
| Voltage - Zener (Nom) (Vz) | 12V | |
|---|---|---|
| Tolerance | ±5% | |
| Power - Max | 350mW | |
| Impedance (Max) (Zzt) | 25 Ohms | |
| Current - Reverse Leakage @ Vr | 100nA @ 8V | |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA | |
| Operating Temperature | -55°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23-3 (TO-236) | |
| Base Part Number | BZX84C12 |
