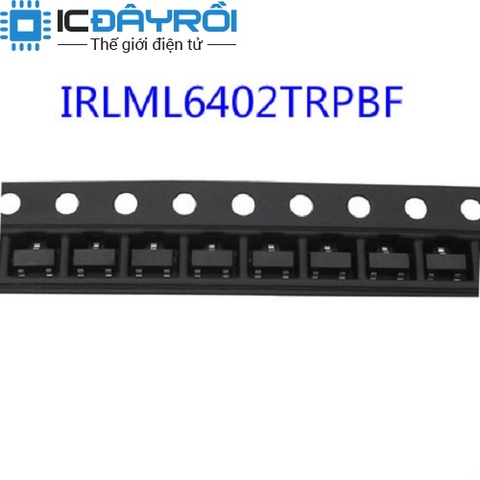

IRLML6402TRPBF MOSFET P-CH 20V 3.7A SOT-23

1.500₫

Còn hàng

IRLML6402PBF MOSFET P-Channel 20V 3.7A SOT-23


Datasheets IRLML6402PbF
Design Resources IRLML6402TR Saber Model
IRLML6402TR Spice Model
Standard Package 3,000
Category Discrete Semiconductor Products
Family FETs - Single
Series HEXFET®
Packaging Tape & Reel (TR)
FET Type MOSFET P-Channel, Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 3.7A (Ta)
Rds On (Max) @ Id, Vgs 65 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id 1.2V @ 250µA
Gate Charge (Qg) @ Vgs 12nC @ 5V
Input Capacitance (Ciss) @ Vds 633pF @ 10V
Power - Max 1.3W
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package Micro3™/SOT-23
Dynamic Catalog P-Channel Logic Level Gate FETs
Other Names IRLML6402PBFTR
