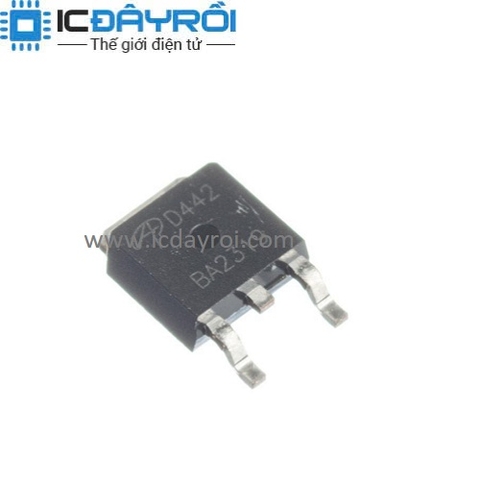

AOD442 MOSFET N-CH TO-252 7A/37A 60V
4.000₫
Còn hàng
Mô tả :
Description
MOSFET N-CH 60V 7A/37A TO252
Detailed Description
N-Channel 7A (Ta), 37A (Tc) 2.1W (Ta), 60W (Tc) Surface Mount TO-252, (D-Pak)
Thông số kỹ thuật:
- Package: Tape & Reel (TR)
- : Cut Tape (CT)
- : Digi-Reel®
- Part Status: Not For New Designs
- FET Type:...
Description
MOSFET N-CH 60V 7A/37A TO252
Detailed Description
N-Channel 7A (Ta), 37A (Tc) 2.1W (Ta), 60W (Tc) Surface Mount TO-252, (D-Pak)
Thông số kỹ thuật:
- - Package: Tape & Reel (TR)
- - : Cut Tape (CT)
- - : Digi-Reel®
- - Part Status: Not For New Designs
- - FET Type: N-Channel
- - Technology: MOSFET (Metal Oxide)
- - Current - Continuous Drain (Id) @ 25°C: 7A (Ta), 37A (Tc)
- - Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- - Rds On (Max) @ Id, Vgs: 20mOhm @ 20A, 10V
- - Vgs(th) (Max) @ Id: 2.7V @ 250µA
- - Vgs (Max): ±20V
- - FET Feature: -
- - Power Dissipation (Max): 2.1W (Ta), 60W (Tc)
- - Operating Temperature: -55°C ~ 175°C (TJ)
- - Mounting Type: Surface Mount
- - Supplier Device Package: TO-252, (D-Pak)
- - Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- - Drain to Source Voltage (Vdss): 60 V
- - Gate Charge (Qg) (Max) @ Vgs: 68 nC @ 10 V
- - Input Capacitance (Ciss) (Max) @ Vds: 2300 pF @ 30 V
