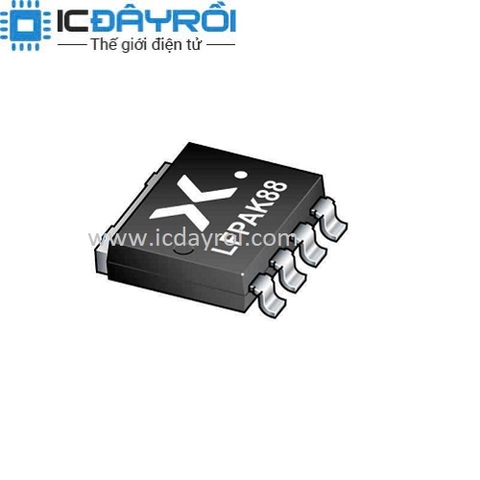

BUK7S0R5-40H MOSFET N-CH 40V 500A SOT1235
25.000₫
Còn hàng
Mô tả :
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
40 V
Current - Continuous Drain (Id) @ 25°C
500A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
0.55mOhm @ 25A, 10V
Vgs(th) (Max) @ Id
3.6V @ 1mA
Gate Charge (Qg) (Max) @...
|
FET Type |
|
|
|
Technology |
|
|
|
Drain to Source Voltage (Vdss) |
40 V |
|
|
Current - Continuous Drain (Id) @ 25°C |
|
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
|
Rds On (Max) @ Id, Vgs |
0.55mOhm @ 25A, 10V |
|
|
Vgs(th) (Max) @ Id |
3.6V @ 1mA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
267 nC @ 10 V |
|
|
Vgs (Max) |
+20V, -10V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
21162 pF @ 25 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
375W (Tc) |
|
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
