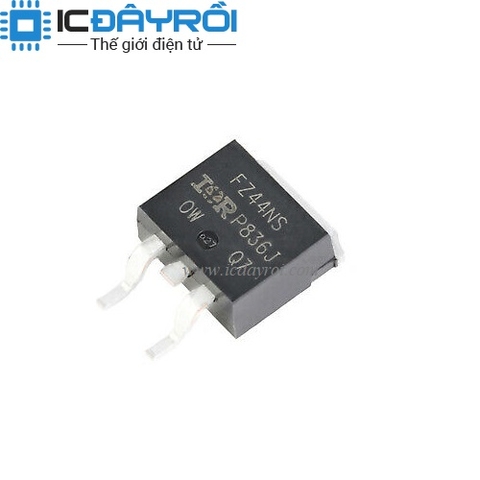

IRFZ44NSTRLPBF MOSFET N-CH 49A 55V
7.000₫
Còn hàng
Mô tả :
FZ44NS IRFZ44NSTRLPBF TO-263 55V/49A
Categories
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer
Infineon Technologies
Series
HEXFET®
Packaging
Cut Tape (CT)
Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
55V
Current - Continuous Drain (Id) @ 25°C
49A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
17.5mOhm...
FZ44NS IRFZ44NSTRLPBF TO-263 55V/49A
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 55V | |
| Current - Continuous Drain (Id) @ 25°C | 49A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 17.5mOhm @ 25A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 63nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1470pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 3.8W (Ta), 94W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D2PAK | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
