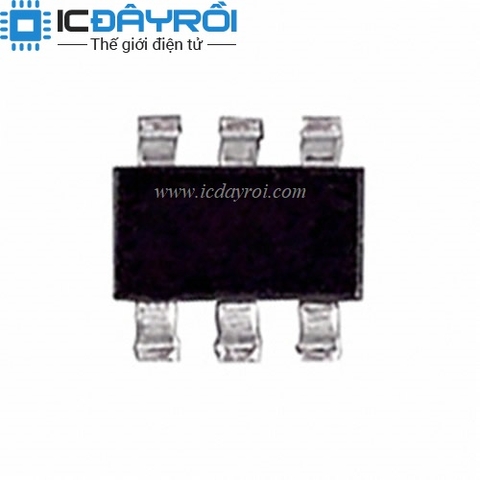

FDC602P MOSFET P-CH 20V 5.5A SSOT-6
2.500₫
Còn hàng
Mô tả :
P-Channel 20V 5.5A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
Categories
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer
ON Semiconductor
Series
PowerTrench®
Packaging
Cut Tape (CT)
Part Status
Active
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
20V
Current - Continuous Drain (Id) @ 25°C
5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds...
P-Channel 20V 5.5A (Ta) 1.6W (Ta) Surface Mount SuperSOT™-6
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | PowerTrench® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 5.5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 4.5V | |
| Vgs (Max) | ±12V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1456pF @ 10V | |
| FET Feature | - | |
| Power Dissipation (Max) | 1.6W (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SuperSOT™-6 | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Base Part Number | FDC602 |
