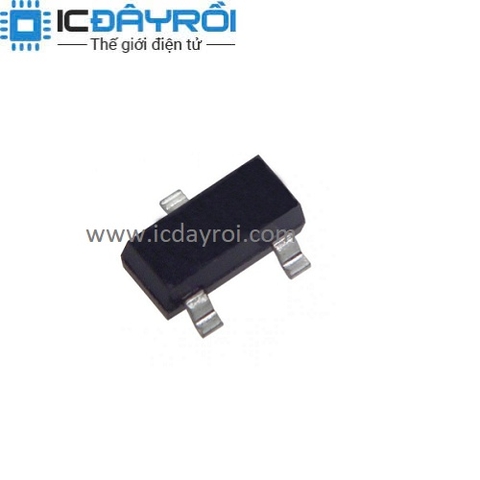

AO3422 MOSFET N-CH 2.1A 55V SOT-23
1.000₫
Còn hàng
Mô tả :
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
55 V
Current - Continuous Drain (Id) @ 25°C
2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 4.5V
Rds On (Max) @ Id, Vgs
160mOhm @ 2.1A, 4.5V
Vgs(th) (Max) @ Id
2V @ 250µA
Gate Charge (Qg) (Max)...
|
FET Type |
|
|
|
Technology |
|
|
|
Drain to Source Voltage (Vdss) |
55 V |
|
|
Current - Continuous Drain (Id) @ 25°C |
|
|
|
Drive Voltage (Max Rds On, Min Rds On) |
2.5V, 4.5V |
|
|
Rds On (Max) @ Id, Vgs |
160mOhm @ 2.1A, 4.5V |
|
|
Vgs(th) (Max) @ Id |
2V @ 250µA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
3.3 nC @ 4.5 V |
|
|
Vgs (Max) |
±12V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
300 pF @ 25 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
1.25W (Ta) |
|
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
|
Grade |
- |
|
|
Qualification |
- |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
SOT-23-3 |
