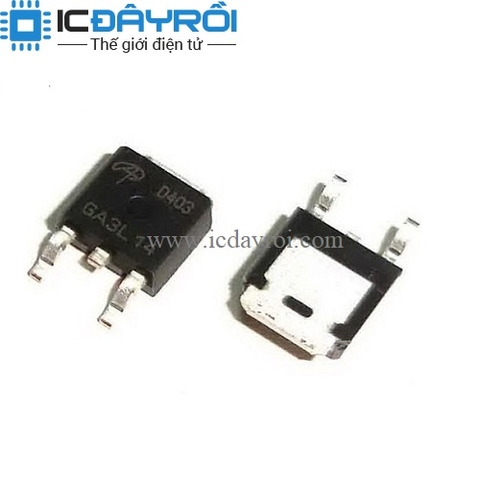

AOD403 MOSFET P-CH TO-252 70A 30V
12.000₫
Mô tả :
hàng loại 1
Description
MOSFET P-CH 30V 15A/70A TO252
Detailed Description
P-Channel 15A (Ta), 70A (Tc) 2.5W (Ta), 90W (Tc) Surface Mount TO-252, (D-Pak)
Thông số kỹ thuật:
- Part Status: Not For New Designs
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V, 20V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 20A, 20V
- Vgs(th) (Max) @ Id: 3.5V @ 250µA
- Vgs (Max): ±25V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 90W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252, (D-Pak)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Drain to Source Voltage (Vdss): 30 V
- Gate Charge (Qg) (Max) @ Vgs: 120 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 5300 pF @ 15 V
