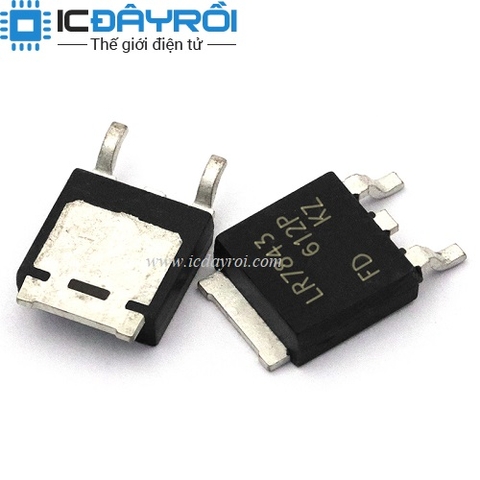

IRLR7843TRPBF MOSFET N-CH 161A 30V
5.000₫
Còn hàng
Mô tả :
MOSFET N-CH 30V 161A DPAK
MOSFET N-CH 30V 161A DPAK
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 161A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 4.5V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 4380pF @ 15V | |
| FET Feature | - | |
| Power Dissipation (Max) | 140W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D-Pak | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
