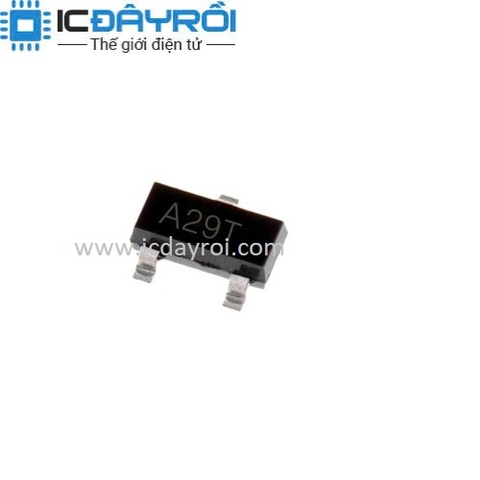

AO3402 MOSFET N-CH 4A 30V SOT-23
1.500₫
Còn hàng
Mô tả :
MOSFET N-CH 30V 4A SOT23-3L
Manufacturer Standard Lead Time
N-Channel 4A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L
Thông số kỹ thuật
- Part Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
-...
MOSFET N-CH 30V 4A SOT23-3L
Manufacturer Standard Lead Time
N-Channel 4A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L
Thông số kỹ thuật
- - Part Status: Not For New Designs
- - FET Type: N-Channel
- - Technology: MOSFET (Metal Oxide)
- - Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- - Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
- - Rds On (Max) @ Id, Vgs: 55mOhm @ 4A, 10V
- - Vgs(th) (Max) @ Id: 1.4V @ 250µA
- - Vgs (Max): ±12V
- - FET Feature: -
- - Power Dissipation (Max): 1.4W (Ta)
- - Operating Temperature: -55°C ~ 150°C (TJ)
- - Mounting Type: Surface Mount
- - Supplier Device Package: SOT-23-3L
- - Package / Case: TO-236-3, SC-59, SOT-23-3
- - Drain to Source Voltage (Vdss): 30 V
- - Gate Charge (Qg) (Max) @ Vgs: 4.34 nC @ 4.5 V
- - Input Capacitance (Ciss) (Max) @ Vds: 390 pF @ 15 V
