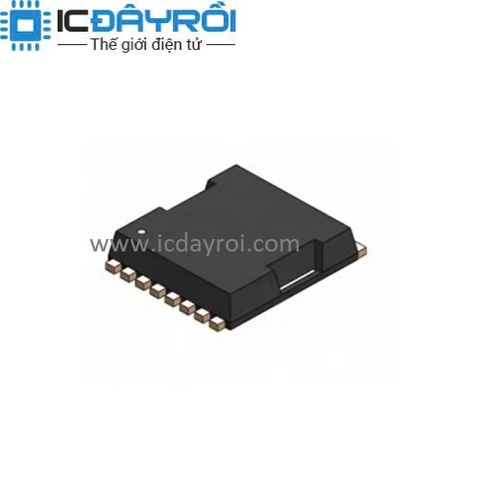

AOTL66912 MOSFET N-CH 100V 380A
15.000₫
Còn hàng
Mô tả :
Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
49A (Ta), 380A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
6V, 10V
Rds On (Max) @ Id, Vgs
1.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
3.5V @ 250µA
Gate...
|
Part Status |
Active |
|
|
FET Type |
|
|
|
Technology |
|
|
|
Drain to Source Voltage (Vdss) |
100 V |
|
|
Current - Continuous Drain (Id) @ 25°C |
|
|
|
Drive Voltage (Max Rds On, Min Rds On) |
6V, 10V |
|
|
Rds On (Max) @ Id, Vgs |
1.7mOhm @ 20A, 10V |
|
|
Vgs(th) (Max) @ Id |
3.5V @ 250µA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
220 nC @ 10 V |
|
|
Vgs (Max) |
±20V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
12500 pF @ 50 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
8.3W (Ta), 500W (Tc) |
|
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
