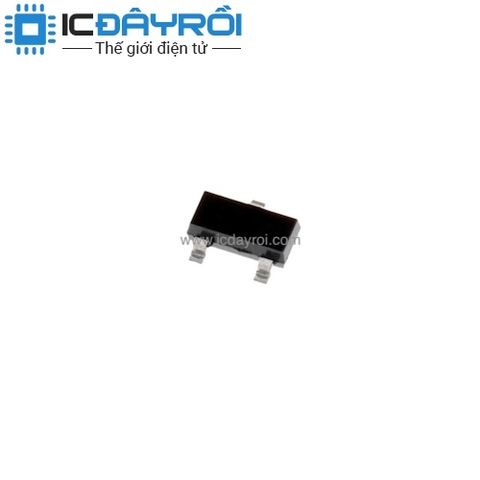

FDN337N MOSFET N-CH 30V 2.2A SOT-23-3
4.000₫
Còn hàng
Mô tả :
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
30 V
Current - Continuous Drain (Id) @ 25°C
2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 4.5V
Rds On (Max) @ Id, Vgs
65mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @...
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Active |
|
|
FET Type |
||
|
Technology |
||
|
Drain to Source Voltage (Vdss) |
30 V |
|
|
Current - Continuous Drain (Id) @ 25°C |
||
|
Drive Voltage (Max Rds On, Min Rds On) |
2.5V, 4.5V |
|
|
Rds On (Max) @ Id, Vgs |
65mOhm @ 2.2A, 4.5V |
|
|
Vgs(th) (Max) @ Id |
1V @ 250µA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
9 nC @ 4.5 V |
|
|
Vgs (Max) |
±8V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
300 pF @ 10 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
500mW (Ta) |
|
|
Operating Temperature |
-55°C ~ 155°C (TJ) |
