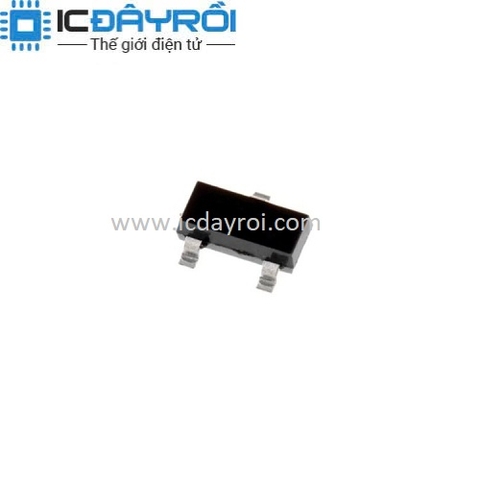

IRLML6401TRPBF MOSFET P-CH 12V 4.3A SOT-23
900₫
Còn hàng
Mô tả :
P-Channel 12V 4.3A (Ta) 1.3W (Ta) Surface Mount Micro3™/SOT-23
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25°C 4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V ...
P-Channel 12V 4.3A (Ta) 1.3W (Ta) Surface Mount Micro3™/SOT-23
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25°C 4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 50mOhm @ 4.3A, 4.5V
Vgs(th) (Max) @ Id 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 15nC @ 5V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 830pF @ 10V
FET Feature -
Power Dissipation (Max) 1.3W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package Micro3™/SOT-23
