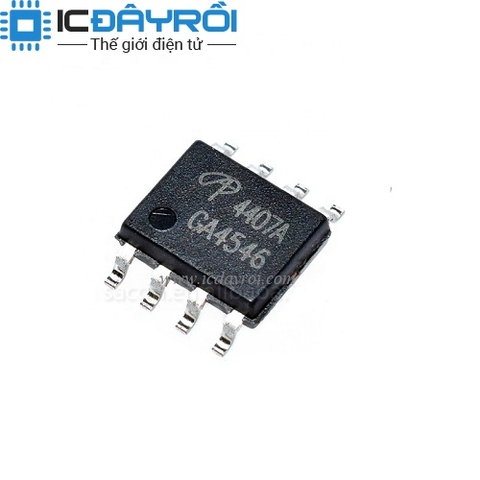

AO4407A MOSFET P-CH 30V 12A
2.500₫
Còn hàng
Mô tả :
P-Channel 30 V 12A (Ta) 3.1W (Ta) Surface Mount 8-SOIC
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Not For New Designs |
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Current - Continuous Drain (Id) @ 25°C |
12A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
6V, 20V |
|
|
Rds On (Max) @ Id, Vgs |
11mOhm @ 12A, 20V |
|
|
Vgs(th) (Max) @ Id |
3V @ 250µA |
|
|
Vgs (Max) |
±25V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
3.1W (Ta) |
|
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
8-SOIC |
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
|
Drain to Source Voltage (Vdss) |
30 V |
|
|
Gate Charge (Qg) (Max) @ Vgs |
39 nC @ 10 V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
2600 pF @ 15 V |
|
|
Base Product Number |
