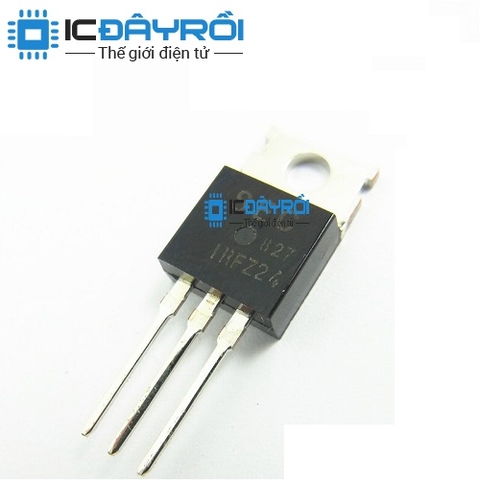

IRFZ24N MOSFET N-CH 17A 55V
5.000₫
Còn hàng
Mô tả :
IRFZ24N TO220 MOSFET N-CH 17A 55V
IRFZ24N TO220 MOSFET N-CH 17A 55V
Thông số kỹ thuật:
| FET Type | N-Channel |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 640pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
