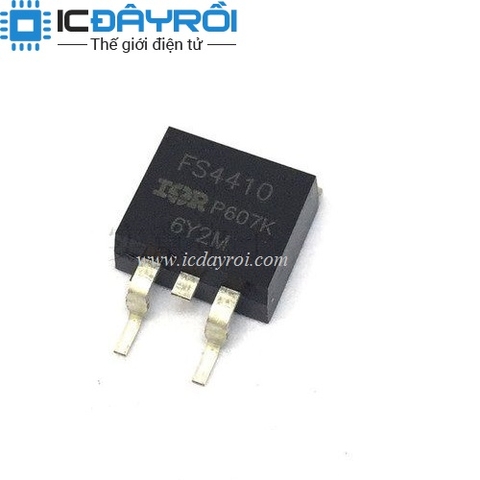

IRFS4410PBF MOSFET N-CH 88A 100V
10.000₫
Còn hàng
Mô tả :
IRFS4410 TO263 MOSFET N-1CH 88A 100V
IRFS4410PBF IRFS4410 FS4410
| Technology | MOSFET (Metal Oxide) | |
|---|---|---|
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 88A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 58A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 150µA | |
| Gate Charge (Qg) (Max) @ Vgs | 180nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 5150pF @ 50V | |
| FET Feature | - | |
| Power Dissipation (Max) | 200W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D²PAK (TO-263AB) | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
