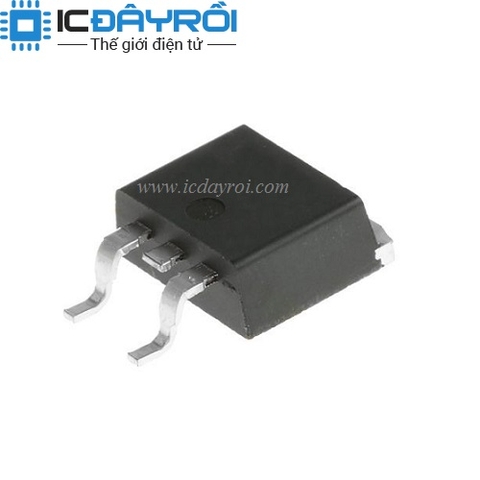

IRF9540STRLPBF MOSFET P-CH 19A 100V TO-263
10.000₫
Còn hàng
Mô tả :
P-Channel 100V 19A (Tc) 3.7W (Ta), 150W (Tc) Surface Mount D2PAK
Packaging
Cut Tape (CT)
Part Status
Active
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100V
Current - Continuous Drain (Id) @ 25°C
19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
200...
P-Channel 100V 19A (Tc) 3.7W (Ta), 150W (Tc) Surface Mount D2PAK
| Packaging | Cut Tape (CT) | |
|---|---|---|
| Part Status | Active | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 61nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 3.7W (Ta), 150W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D2PAK | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
