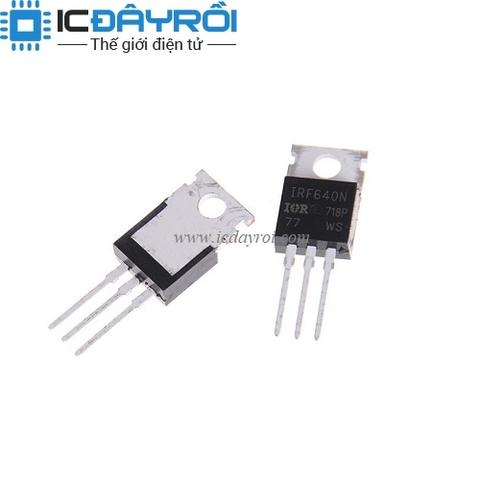

IRF640N MOSFET N-CH 18A 200V
7.000₫
Còn hàng
Mô tả :
IRF640N TO220 MOSFET N-CH 18A 200V
Datasheets
IRF640N(S,L)PbF
FET Type
MOSFET N-Channel, Metal Oxide
FET Feature
Standard
Drain to Source Voltage (Vdss)
200V
Current - Continuous Drain (Id) @ 25°C
18A (Tc)
Rds On (Max) @ Id, Vgs
150 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) @ Vgs
67nC...
IRF640N TO220 MOSFET N-CH 18A 200V
| Datasheets | IRF640N(S,L)PbF |
|---|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Rds On (Max) @ Id, Vgs | 150 mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) @ Vgs | 67nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 1160pF @ 25V |
| Power - Max | 150W |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
