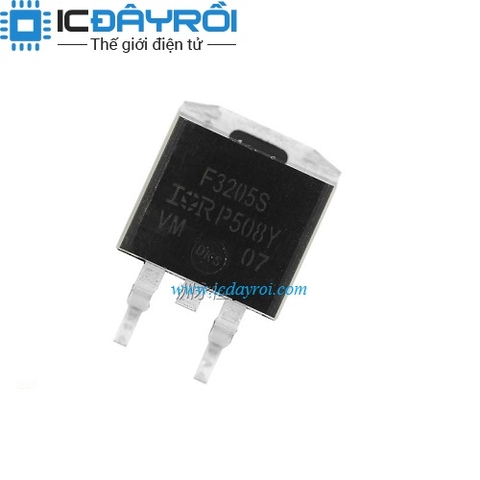

IRF3205STRLPBF MOSFET N-CH 110A 55V TO263
8.000₫
Còn hàng
Mô tả :
IRF3205STRLPBF IRF3205S F3205S TO263
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
55V
Current - Continuous Drain (Id) @ 25°C
110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
8 mOhm @ 62A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge...
IRF3205STRLPBF IRF3205S F3205S TO263
| FET Type | N-Channel | |
|---|---|---|
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 55V | |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 8 mOhm @ 62A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 146nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 3247pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 200W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D2PAK | |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
