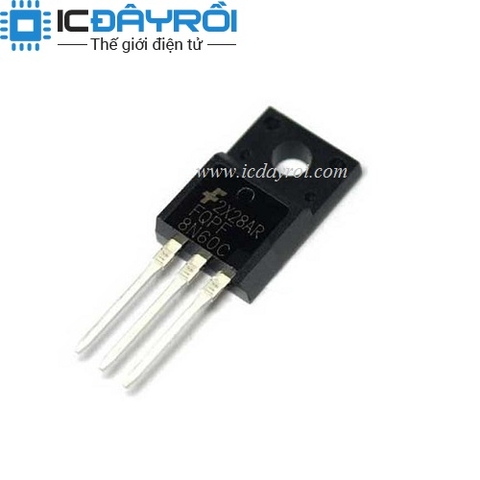

FQPF8N60C MOSFET N-CH 7.5A 600V
6.000₫
Còn hàng
Mô tả :
MOSFET N-CH 600V 7.5A TO-220F
Categories
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer
ON Semiconductor
Series
QFET®
Packaging
Tube
Part Status
Not For New Designs
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
600V
Current - Continuous Drain (Id) @ 25°C
7.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max)...
MOSFET N-CH 600V 7.5A TO-220F
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Not For New Designs | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 1.2 Ohm @ 3.75A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1255pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 48W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220F | |
| Package / Case | TO-220-3 Full Pack |
