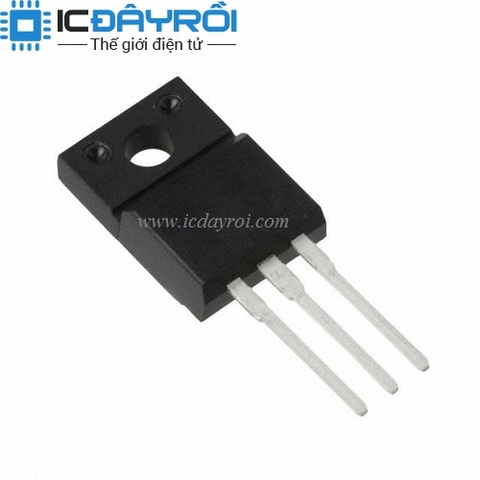

FQPF7N65C MOSFET N-CH 7A 650V
10.000₫
Còn hàng
Mô tả :
MOSFET N-CH 650V 7A TO-220F
Categories
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer
ON Semiconductor
Series
QFET®
Packaging
Tube
Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
650V
Current - Continuous Drain (Id) @ 25°C
7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
1.4...
MOSFET N-CH 650V 7A TO-220F
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 650V | |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 3.5A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1245pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 52W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220F | |
| Package / Case | TO-220-3 Full Pack |
