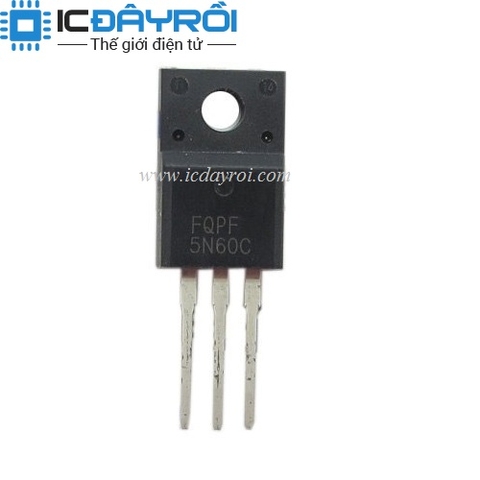

FQPF5N60C MOSFET N-CH 4.5A 600V
4.500₫
Còn hàng
Mô tả :
MOSFET N-CH 600V 4.5A TO-220F
Manufacturer
ON Semiconductor
Series
QFET®
Packaging
Tube
Part Status
Not For New Designs
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
600V
Current - Continuous Drain (Id) @ 25°C
4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
2.5 Ohm @ 2.25A, 10V
Vgs(th)...
MOSFET N-CH 600V 4.5A TO-220F
Manufacturer | ON Semiconductor | |
---|---|---|
Series | QFET® | |
Packaging | Tube | |
Part Status | Not For New Designs | |
FET Type | N-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 600V | |
Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 10V | |
Rds On (Max) @ Id, Vgs | 2.5 Ohm @ 2.25A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V | |
Vgs (Max) | ±30V | |
Input Capacitance (Ciss) (Max) @ Vds | 670pF @ 25V | |
FET Feature | - | |
Power Dissipation (Max) | 33W (Tc) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |
Supplier Device Package | TO-220F | |
Package / Case | TO-220-3 Full Pack |
