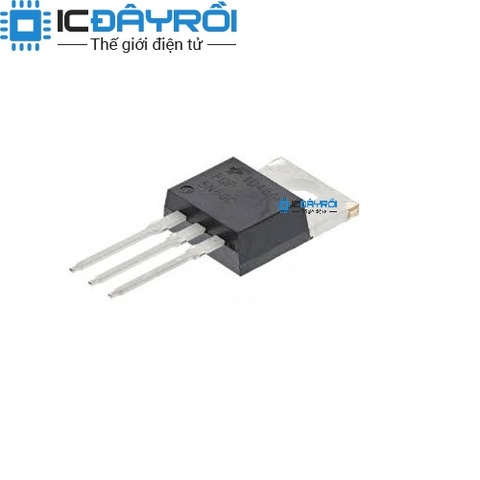

FQP5N60C MOSFET N-CH 4.5A 600V
4.000₫
Còn hàng
Mô tả :
MOSFET FQP5N60C N-CH 600V 4.5A TO-220
MOSFET FQP5N60C N-CH 600V 4.5A TO-220
| Manufacturer | ON Semiconductor | |
|---|---|---|
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 670pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 100W (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.5 Ohm @ 2.25A, 10V | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220-3 | |
| Package / Case | TO-220-3 |
