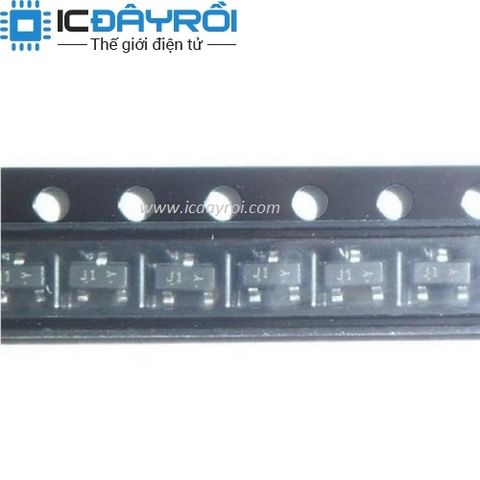

BSS138LT1G MOSFET N-CH 50V 200MA
400₫
Còn hàng
Mô tả :
N-Channel 50V 200mA (Ta) 225mW (Ta) Surface Mount SOT-23-3 (TO-236)
MOSFET N-CH 50V 200MA SOT-23
| FET Type | N-Channel | |
|---|---|---|
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 50V | |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | |
| Rds On (Max) @ Id, Vgs | 3.5 Ohm @ 200mA, 5V | |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 225mW (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-23-3 (TO-236) | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
