AO3401

700₫

Còn hàng

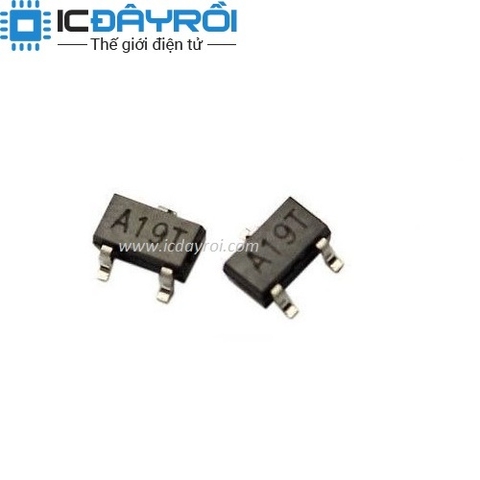

AO3401 SOT23-3 MOSFET P-1CH 4A 30V (A19T)

Technology                   MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Rds On (Max) @ Id, Vgs 50 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 14nC @ 10V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 645pF @ 15V
FET Feature -
Power Dissipation (Max) 1.4W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3

​
data sheet
