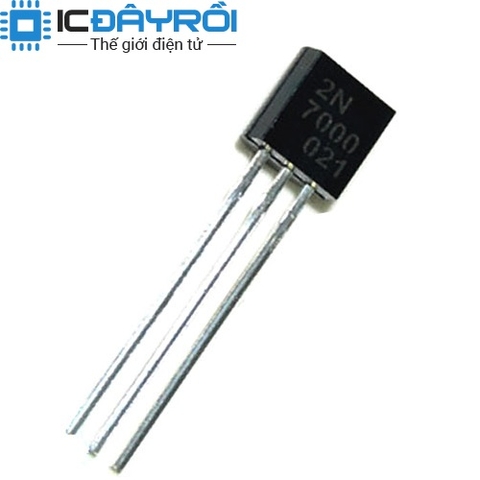

2N7000 MOSFET N-CH 60V 200MA TO-92
2.000₫
Còn hàng
Mô tả :
MOSFET N-CH 60V 200MA TO-92
Categories
Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer
ON Semiconductor
Series
-
Packaging
Bulk
Part Status
Active
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60V
Current - Continuous Drain (Id) @ 25°C
200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @...
MOSFET N-CH 60V 200MA TO-92
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | N-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 5 Ohm @ 500mA, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 1mA | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 400mW (Ta) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-92-3 | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Base Part Number | 2N7000 |
