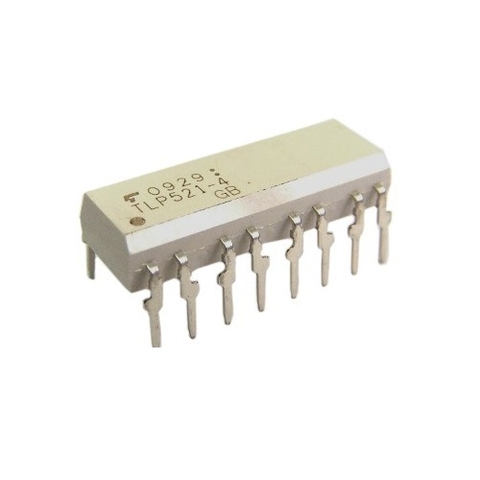

TLP521-4
9.000₫
Còn hàng
Mô tả :
Manufacturer
Toshiba
Category
Photocouplers
Family
Transistor Output
Configuration
4 Channel
Input Type
AC/DC
Output Device
Phototransistor
Maximum Collector Emitter Voltage
55 V
Maximum Collector Emitter Saturation Voltage
0.4 V
Isolation Voltage
2500 Vrms
Current Transfer Ratio
50 % to 600 %
Maximum Forward Diode Voltage
1.3 V
Minimum Forward Diode Voltage
1 V
Maximum Collector Current
10 mA
Maximum Power Dissipation
150 mW
Operating Temperature
- 25 C ~...
|
Manufacturer |
Toshiba |
|
Category |
Photocouplers |
|
Family |
Transistor Output |
|
Configuration |
4 Channel |
|
Input Type |
AC/DC |
|
Output Device |
Phototransistor |
|
Maximum Collector Emitter Voltage |
55 V |
|
Maximum Collector Emitter Saturation Voltage |
0.4 V |
|
Isolation Voltage |
2500 Vrms |
|
Current Transfer Ratio |
50 % to 600 % |
|
Maximum Forward Diode Voltage |
1.3 V |
|
Minimum Forward Diode Voltage |
1 V |
|
Maximum Collector Current |
10 mA |
|
Maximum Power Dissipation |
150 mW |
|
Operating Temperature |
- 25 C ~ + 85 C |
|
Forward Current |
16 mA |
|
Maximum Fall Time |
2 us |
|
Maximum Input Diode Current |
25 mA |
|
Maximum Reverse Diode Voltage |
5 V |
|
Maximum Rise Time |
2 us |
|
Output Type |
DC |
|
Package / Case |
DIP-16 |
