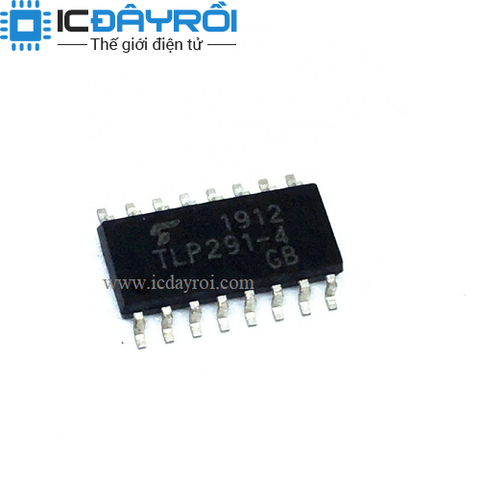

TLP291-4GB

9.000₫

Còn hàng

Package

Tube

Part Status

Active

Voltage - Isolation

2500Vrms

Current Transfer Ratio (Min)

100% @ 5mA

Current Transfer Ratio (Max)

400% @ 5mA

Turn On / Turn Off Time (Typ)

3µs, 3µs

Rise / Fall Time (Typ)

2µs, 3µs

Input Type

DC

Output Type

Transistor

Voltage - Output (Max)

80V

Current - Output / Channel

50mA

Voltage - Forward (Vf) (Typ)

1.2V

Vce Saturation (Max)

400mV

Operating Temperature

-55°C ~ 110°C

Mounting Type

Surface Mount

Package / Case

16-SOIC (0.179", 4.55mm Width)

Supplier Device Package

16-SO

Number of Channels

4

Current - DC Forward (If) (Max)

50 mA

Base Product Number

TLP291
