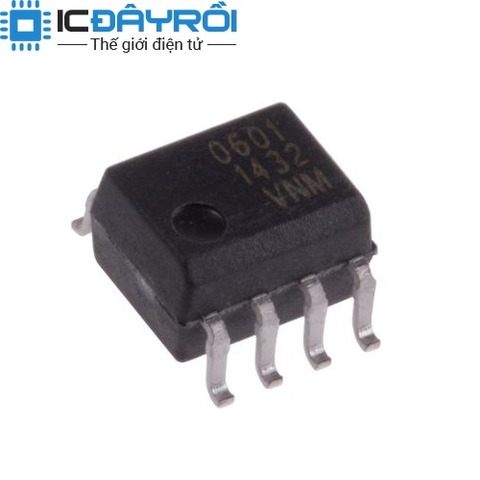

HCPL0601
9.000₫
Còn hàng
Mô tả :
OPTOISO 3.75KV OPN COLLECTOR 8SOP
Categories
Isolators
Optoisolators - Logic Output
Manufacturer
ON Semiconductor
Series
-
Packaging
Tube
Part Status
Active
Number of Channels
1
Inputs - Side 1/Side 2
1/0
Voltage - Isolation
3750Vrms
Common Mode Transient Immunity (Min)
10kV/µs
Input Type
DC
Output Type
Open Collector
Current - Output / Channel
50mA
Data Rate
10Mbps
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Rise / Fall Time (Typ)
50ns,...
OPTOISO 3.75KV OPN COLLECTOR 8SOP
| Categories | Isolators | |
|---|---|---|
| Optoisolators - Logic Output | ||
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | 10kV/µs | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 50mA | |
| Data Rate | 10Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | |
| Rise / Fall Time (Typ) | 50ns, 12ns | |
| Voltage - Forward (Vf) (Typ) | 1.75V (Max) | |
| Current - DC Forward (If) (Max) | 50mA | |
| Voltage - Supply | 4.5V ~ 5.5V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SOIC |
