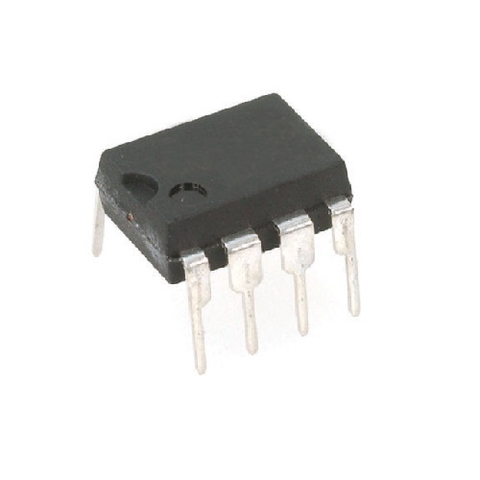

HCPL2631
15.000₫
Còn hàng
Mô tả :
Features
- Very high speed – 10 MBit/s
- Superior CMR – 10 kV/µs
- Double working voltage-480V
- Fan-out of 8 over -40°C to +85°C
- Logic gate output
- Strobable output
- Wired OR-open collector
- U.L. recognized (File # E90700)
Applications
- Ground loop elimination
- LSTTL to...
Features
- - Very high speed – 10 MBit/s
- - Superior CMR – 10 kV/µs
- - Double working voltage-480V
- - Fan-out of 8 over -40°C to +85°C
- - Logic gate output
- - Strobable output
- - Wired OR-open collector
- - U.L. recognized (File # E90700)
Applications
- - Ground loop elimination
- - LSTTL to TTL, LSTTL or 5-volt CMOS
- - Line receiver, data transmission
- - Data multiplexing
- - Switching power supplies
- - Pulse transformer replacement
- - Computer-peripheral interface
Description
The 6N137, HCPL2601, HCPL2611 single-channel and HCPL2630, HCPL2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8).
An internal noise shield provides superior common mode rejection of typically 10kV/µs. The HCPL2601 and HCPL2631 has a minimum CMR of 5kV/µs. The HCPL2611 has a minimum CMR of 10kV/µs.
