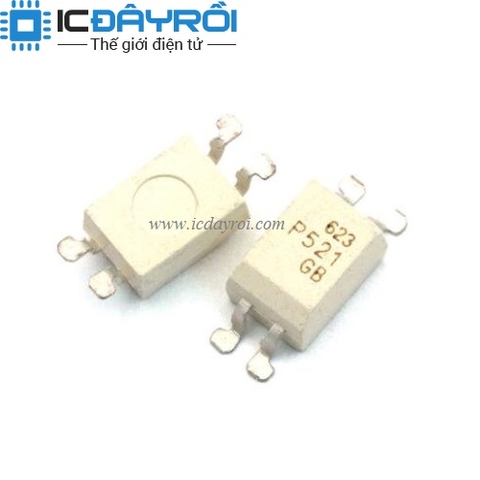

TLP521-1GB SOP-4
2.000₫
Còn hàng
Mô tả :
TLP521-1GB TLP521-1 P521 SOP-4
Configuration
1 Channel
Input Type
AC/DC
Output Device
NPN Phototransistor
Maximum Collector Emitter Voltage
55 V
Maximum Collector Emitter Saturation Voltage
0.4 V
Isolation Voltage
2500 Vrms
Current Transfer Ratio
50 % to 150 %
Maximum Forward Diode Voltage
1.3 V
Minimum Forward Diode Voltage
1 V
Maximum Collector Current
10 mA
Maximum Power Dissipation
250 mW
Operating Temperature
- 25...
TLP521-1GB TLP521-1 P521 SOP-4
| Configuration | 1 Channel |
| Input Type | AC/DC |
| Output Device | NPN Phototransistor |
| Maximum Collector Emitter Voltage | 55 V |
| Maximum Collector Emitter Saturation Voltage | 0.4 V |
| Isolation Voltage | 2500 Vrms |
| Current Transfer Ratio | 50 % to 150 % |
| Maximum Forward Diode Voltage | 1.3 V |
| Minimum Forward Diode Voltage | 1 V |
| Maximum Collector Current | 10 mA |
| Maximum Power Dissipation | 250 mW |
| Operating Temperature | - 25 C ~ + 85 C |
| Forward Current | 16 mA |
| Maximum Fall Time | 2 us |
| Maximum Input Diode Current | 25 mA |
| Maximum Reverse Diode Voltage | 5 V |
| Maximum Rise Time | 2 us |
| Output Type | DC |
