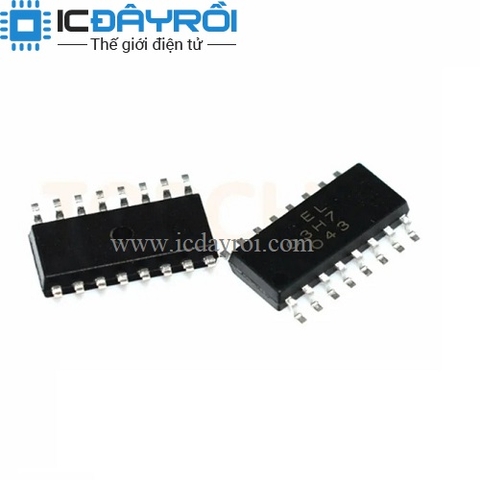

ELQ3H7(TA)
8.000₫
Còn hàng
Mô tả :
ELQ3H7(TA) OPTOISO 3.75KV 4CH TRANS 16SOIC
Specifications
- - Voltage - Isolation: 3750Vrms
- - Current Transfer Ratio (Min): 50% @ 5mA
- - Current Transfer Ratio (Max): 600% @ 5mA
- - Rise / Fall Time (Typ): 5µs, 3µs
- - Input Type: DC
- - Output Type: Transistor
- - Voltage - Output (Max): 80V
- - Current - Output / Channel: 50mA
- - Voltage - Forward (Vf) (Typ): 1.2V
- - Vce Saturation (Max): 200mV
- - Operating Temperature: -55°C ~ 110°C
- - Mounting Type: Surface Mount
- - Package / Case: 16-SOIC (0.173", 4.40mm Width)
- - Supplier Device Package: 16-SSOP
- - Number of Channels: 4
- - Current - DC Forward (If) (Max): 60 mA
- - Datasheet: ELD3H7, ELQ3H7
