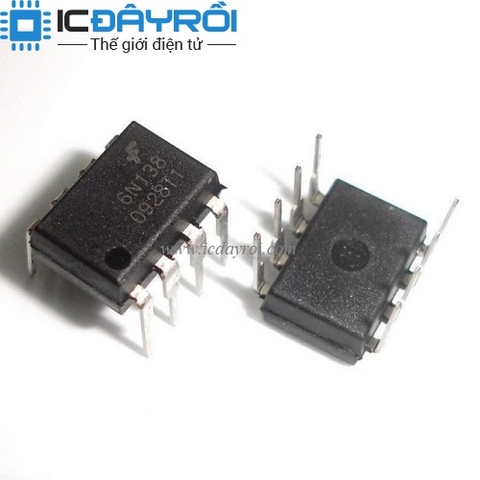

6N138
8.000₫
Còn hàng
Mô tả :
Categories
Isolators
Optoisolators - Transistor, Photovoltaic Output
Manufacturer
Lite-On Inc.
Series
-
Packaging
Tube
Part Status
Active
Number of Channels
1
Voltage - Isolation
5000Vrms
Current Transfer Ratio (Min)
300% @ 1.6mA
Current Transfer Ratio (Max)
2600% @ 1.6mA
Turn On / Turn Off Time (Typ)
1.6µs, 10µs
Rise / Fall Time (Typ)
-
Input Type
DC
Output Type
Darlington with Base
Voltage - Output (Max)
7V
Current -...
| Categories | Isolators | |
|---|---|---|
| Optoisolators - Transistor, Photovoltaic Output | ||
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 300% @ 1.6mA | |
| Current Transfer Ratio (Max) | 2600% @ 1.6mA | |
| Turn On / Turn Off Time (Typ) | 1.6µs, 10µs | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Darlington with Base | |
| Voltage - Output (Max) | 7V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.1V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -20°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-DIP |
