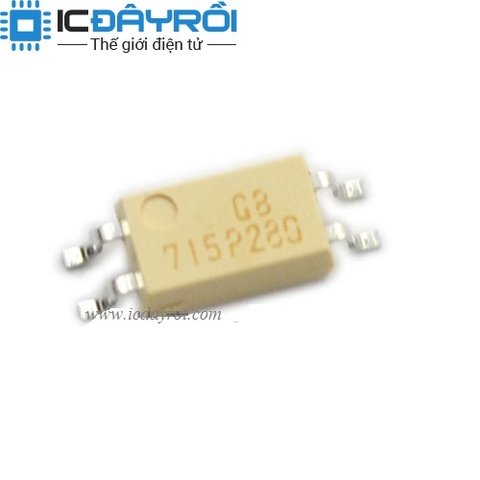

TLP280-1
5.500₫
Hết hàng
Mô tả :
TLP280 TLP280-1 TLP280GB SOP4
Datasheets
TLP280
Photocouplers/Relays Catalog -
Categories
Isolators Optoisolators - Transistor, Photovoltaic Output
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Cut Tape (CT)
Number of Channels
1
Voltage - Isolation
2500Vrms
Current Transfer Ratio (Min)
100% @ 5mA
Current Transfer Ratio (Max)
600% @ 5mA
Turn On / Turn Off Time (Typ)
3µs, 3µs
Rise / Fall Time...
TLP280 TLP280-1 TLP280GB SOP4
| Datasheets | TLP280 Photocouplers/Relays Catalog - |
| Categories | Isolators Optoisolators - Transistor, Photovoltaic Output |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Cut Tape (CT) |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC |
| Supplier Device Package | 4-SOP |
| Standard Package | 1 |
