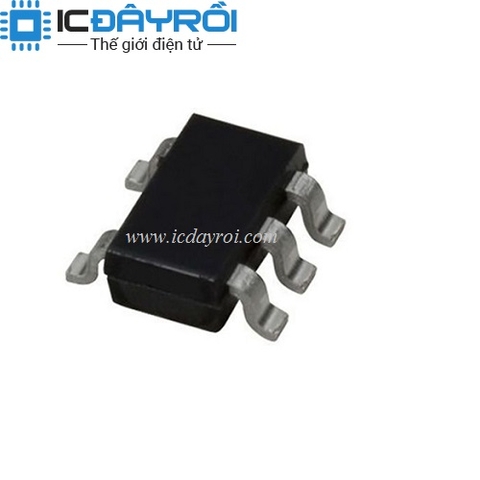

MIC5205-3.3YM5-TR
2.500₫
Còn hàng
Mô tả :
3.3V 0.15A, Low-Noise LDO Regulator, SOT23-5
Packaging
Cut Tape (CT)
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
3.3V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.35V @ 150mA
Current - Output
150mA
Current - Quiescent (Iq)
150µA
Current - Supply (Max)
2.5mA
PSRR
75dB (100Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature,...
3.3V 0.15A, Low-Noise LDO Regulator, SOT23-5
| Packaging | Cut Tape (CT) | |
|---|---|---|
| Part Status | Active | |
| Output Configuration | Positive | |
| Output Type | Fixed | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 16V | |
| Voltage - Output (Min/Fixed) | 3.3V | |
| Voltage - Output (Max) | - | |
| Voltage Dropout (Max) | 0.35V @ 150mA | |
| Current - Output | 150mA | |
| Current - Quiescent (Iq) | 150µA | |
| Current - Supply (Max) | 2.5mA | |
| PSRR | 75dB (100Hz) | |
| Control Features | Enable | |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74A, SOT-753 | |
| Supplier Device Package | SOT-23-5 | |
| Base Part Number | MIC5205 |
