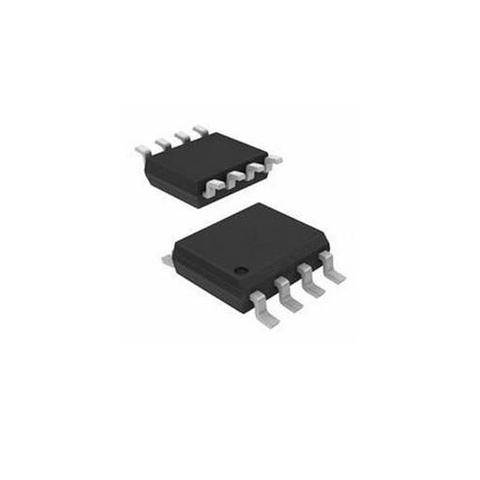

LM258

4.000₫

Còn hàng

Thông số sản phẩm:

  • - Amplifier Type: High Gain Amplifier
  • - Number of Channels: 2 Channel
  • - GBP - Gain Bandwidth Product: 700 kHz
  • - SR - Slew Rate: 0.3 V/us
  • - CMRR - Common Mode Rejection Ratio: 70 dB
  • - Output Current per Channel: 30 mA
  • - Ib - Input Bias Current: 150 nA
  • - Vos - Input Offset Voltage: 5 mV
  • - Supply Voltage - Max: 32 V
  • - Supply Voltage - Min: 3 V
  • - Supply Current per Channel: 1.2 mA
  • - Maximum Operating Temperature: + 85 C
  • - Minimum Operating Temperature: - 25 C
  • - Shutdown: No Shutdown
  • - Mounting Style: Through Hole
  • - Package / Case: SOP-8
  • - Packaging: Tube
  • - Brand: Texas Instruments
  • - Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
  • - en - Input Voltage Noise Density: 40 nV
  • - Maximum Dual Supply Voltage: +/- 16 V
  • - Minimum Dual Supply Voltage: +/- 1.5 V
  • - Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
