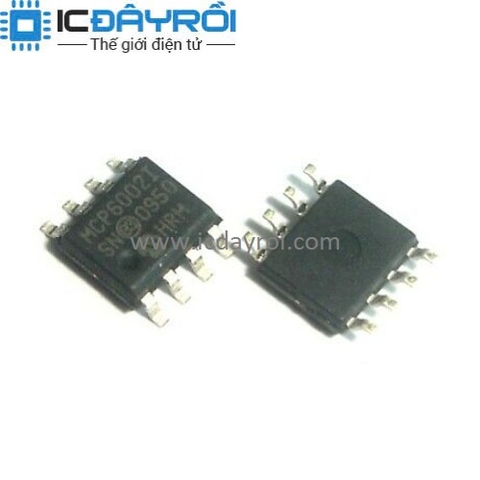

MCP6002-I/SN
6.500₫
Còn hàng
Mô tả :
Packaging
Tube
Part Status
Active
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
0.6V/µs
Gain Bandwidth Product
1 MHz
Current - Input Bias
1 pA
Voltage - Input Offset
4.5 mV
Current - Supply
100µA (x2 Channels)
Current - Output / Channel
23 mA
Voltage - Supply Span (Min)
1.8 V
Voltage - Supply Span (Max)
6 V
Operating Temperature
-40°C ~...
|
Packaging |
Tube |
|
|
Part Status |
Active |
|
|
Amplifier Type |
|
|
|
Number of Circuits |
2 |
|
|
Output Type |
Rail-to-Rail |
|
|
Slew Rate |
0.6V/µs |
|
|
Gain Bandwidth Product |
1 MHz |
|
|
Current - Input Bias |
1 pA |
|
|
Voltage - Input Offset |
4.5 mV |
|
|
Current - Supply |
100µA (x2 Channels) |
|
|
Current - Output / Channel |
23 mA |
|
|
Voltage - Supply Span (Min) |
1.8 V |
|
|
Voltage - Supply Span (Max) |
6 V |
|
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
|
Supplier Device Package |
8-SOIC |
