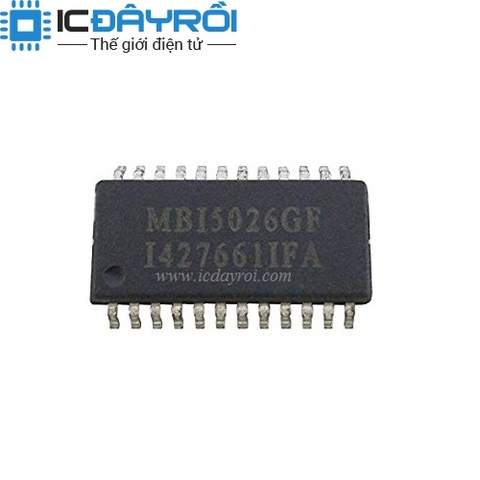

MBI5026 is designed for LED displays. As an enhancement of its predecessor, MBI5016, MBI5026 exploits PrecisionDrive™ technology to enhance its output characteristics. MBI5026 contains a serial buffer and data latches which convert serial input data into parallel output format. At MBI5026 output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of Vf variations.
MBI5026 provides users with great flexibility and device performance while using MBI5026 in their system design for LED display applications, e.g. LED panels. Users may adjust the output current from 5 mA to 90 mA through an external resistor, Rext, which gives users flexibility in controlling the light intensity of LEDs. MBI5026 guarantees to endure maximum 17V at the output port. The high clock frequency, 25 MHz, also satisfies the system requirements of high volume data transmission.
IC LED DRIVER LINEAR SOP24-300-1.00,
16 constant-current output channels
Constant output current invariant to load voltage change
Excellent output current accuracy:
between channels: <±3% (max.), and
between ICs: <±6% (max.)
Output current adjusted through an external resistor
Constant output current range: 5-90 mA
Fast response of output current, OE (min.): 200 ns
25MHz clock frequency
Schmitt trigger input
5V supply voltage SOP24-300-1.00
