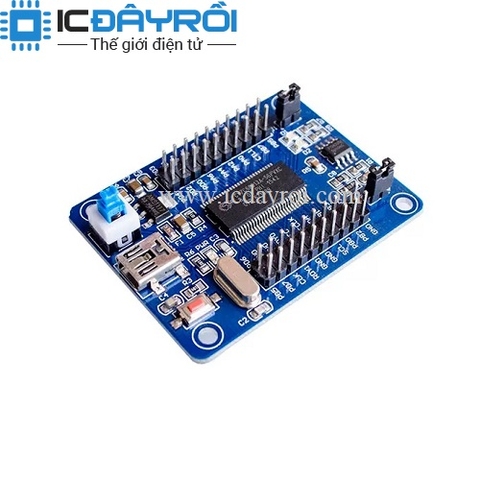

Mạch phân tích logic EZ-USB FX2LP CY7C68013A USB
149.000₫
Còn hàng
Mô tả :
Description:
1. Using CY7C68013A-56 chip: enhanced 51 core low power version, 16KB program data range, 48Mhz frequency, 480Mbps high speed transmission protocol standard, meets USB2.0 specification, compatible with USB1.1;
2. Firmware, EEPROM: A complete in-system programming solution with USB cable for direct...
Description:
- 1. Using CY7C68013A-56 chip: enhanced 51 core low power version, 16KB program data range, 48Mhz frequency, 480Mbps high speed transmission protocol standard, meets USB2.0 specification, compatible with USB1.1;
- 2. Firmware, EEPROM: A complete in-system programming solution with USB cable for direct firmware download, on-board provides 16K (24LC128) High Capacity Program Memory (EEPROM) for storage VID/PID and USB firmware programs. Space to meet the needs of CY7C68013A
- 3. All GPIO pins are through 2.54mm standard, which is very convenient for learners to deploy DIY designs.
- 4. The board firmware can be achieved through the core function of the logic analyzer.
- 5. PDF format, circuit diagram and code provided.
