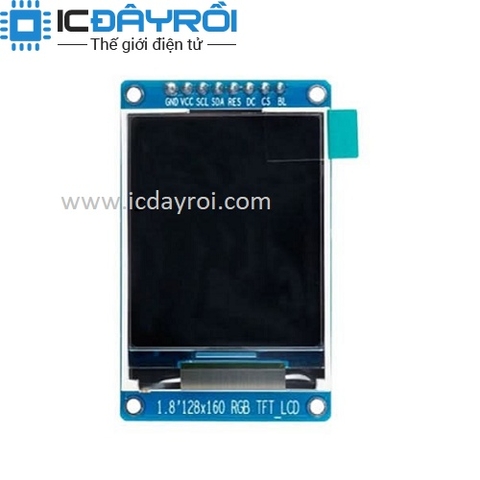

Màn hình TFT 1.8 inch ST7735
80.000₫
Mô tả :
This compact colour TFT display has a 1.8” (diagonal) display with a 160 x 128 pixel resolution at up to 262K colours. It makes use of the commonly used and supported ST7735 controller with communication via a serial data & clock pin. This interface can be driven via a microcontrollers SPI interface. Additionally the interface has control pins for reset, data/command, chip select, and backlight. The latter of which can be directly driven from a digital pin.
The module is supplied with both straight and right-angled 0.1” pitch headers unsoldered.
For Arduino users this display is supported by our HCDisplay library. See example below.
PLEASE NOTE: If you are using this display with a 5V microcontroller we recommend using level shifters.
Specification
Driver: ST7735
Interface: Serial (clk + data) + control pins
Resolution: 160 x128
Colours: 18bit/262K
Supply: 3.3V
Dimensions (ex header): 55mm x 35mm x 4mm
Display area: 1.8” (35 x 28mm)
Pinout
GND........GND
VDD.........3.3V
SCL..........Clock
SDA.........Data
RST..........Reset
DC............Command/data select
CS............Chip select
BLK...........Backlight (high = on)
