Màn hình LCD SPI 1.54 inch 240x240 IC ST7789 TFT IPS
95.000₫
Còn hàng
Mô tả :

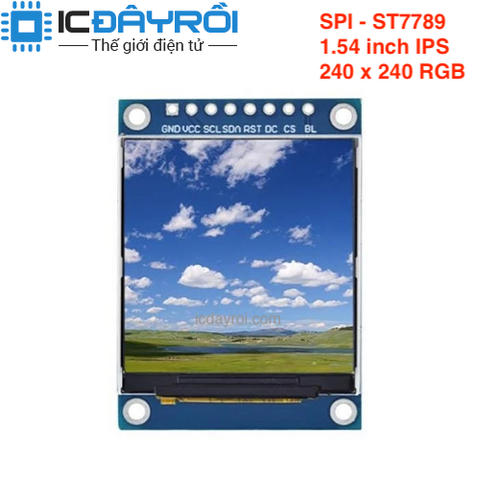

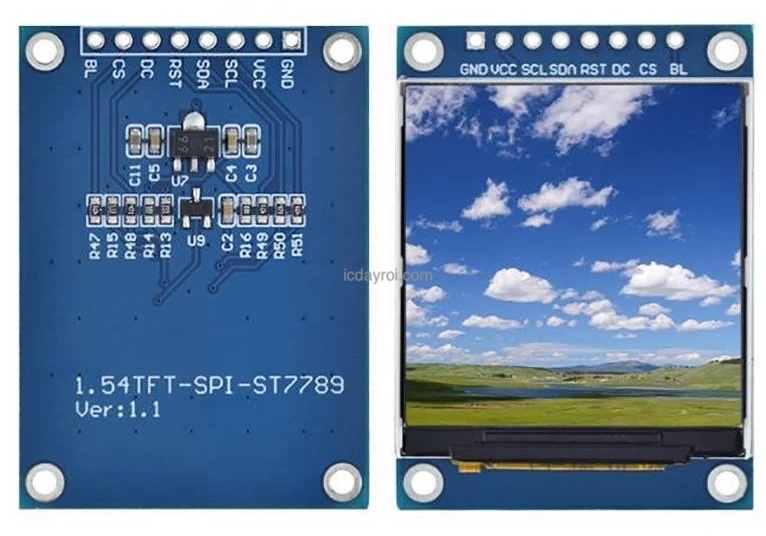

IPS 1.54" Display SPI ST7789 Chipset
This is a 240 X 240 pixels TFT display module, with a 1.54inch display size making it a great fit for small size projects like wearable IoT or any other portable devices. The display’s driver...
IPS 1.54" Display SPI ST7789 Chipset
This is a 240 X 240 pixels TFT display module, with a 1.54inch display size making it a great fit for small size projects like wearable IoT or any other portable devices. The display’s driver IC is ST7789, which you can find many libraries to quickly start with.
Quick Spec
- Display Size: 1.54 inch
- Resolution: 240 x 240
- Active Area: 27.72(H) x 27.72(V) mm
- Module Size: 31.52(H) x 33.72(V) x1.5(D) mm
- Display Color: RGB Full Color
- Interface: 4 Line SPI
- Operating Voltage: 3.3V
- Drive IC: ST7789
- Operating Temperature: -20℃~ + 70℃
- Storage Temperature: -30℃~+ 80℃
- Dimensions: 32.11 X 43.79 X 5.33mm
- Net Weight: 8g

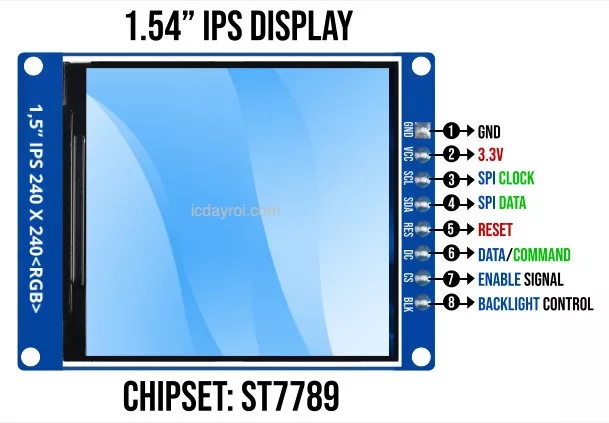

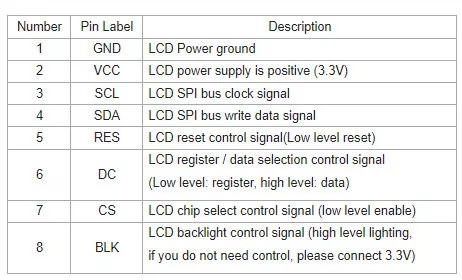

Pinout
Resources
- Adafruit ST7789 and ST7735 Library
- Adafruit’s GFX library (necessary library)
