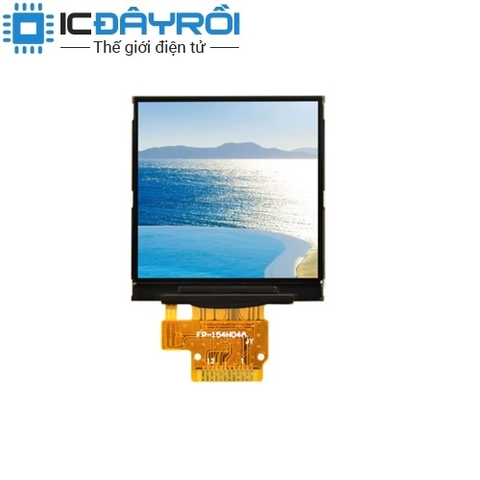

Màn hình 1.54inch 12P ST7789 SPI
50.000₫
Còn hàng
Mô tả :
NO.
Item
Contents
Unit
1
LCD Size
1.54 Inch (Diagonal)
inch
2
Display Mode
Normally black
-
3
Resolution
240(H)RGB x240(V)
pixels
4
Pixel pitch
0.1155(H) x 0.1155(V)
mm
5
Active area
27.72(H) x 27.72(V)
mm
6
Module size
31.52(H) x 33.72(V) x1.9 (D)
mm
7
Pixel arrangement
RGB Vertical stripe
-
8
Interface
4 Line SPI
-
9
Display Colors
262K
colors
10
Drive IC
ST7789V3
-
11
Luminance(cd/m2)
400 (TYP)
Cd/m2
12
Viewing Direction
All View
Best image
13
Backlight
3 White LED Parallel
-
14
Operating Temp.
-20℃~ + 70℃
℃
15
Storage Temp.
-30℃~+ 80℃
℃
16
Weight
2.8
g
|
NO. |
Item |
Contents |
Unit |
|
|
1 |
LCD Size |
1.54 Inch (Diagonal) |
inch |
|
|
2 |
Display Mode |
Normally black |
- |
|
|
3 |
Resolution |
240(H)RGB x240(V) |
pixels |
|
|
4 |
Pixel pitch |
0.1155(H) x 0.1155(V) |
mm |
|
|
5 |
Active area |
27.72(H) x 27.72(V) |
mm |
|
|
6 |
Module size |
31.52(H) x 33.72(V) x1.9 (D) |
mm |
|
|
7 |
Pixel arrangement |
RGB Vertical stripe |
- |
|
|
8 |
Interface |
4 Line SPI |
- |
|
|
9 |
Display Colors |
262K |
colors |
|
|
10 |
Drive IC |
ST7789V3 |
- |
|
|
11 |
Luminance(cd/m2) |
400 (TYP) |
Cd/m2 |
|
|
12 |
Viewing Direction |
All View |
Best image |
|
|
13 |
Backlight |
3 White LED Parallel |
- |
|
|
14 |
Operating Temp. |
-20℃~ + 70℃ |
℃ |
|
|
15 |
Storage Temp. |
-30℃~+ 80℃ |
℃ |
|
|
16 |
Weight |
2.8 |
g |
