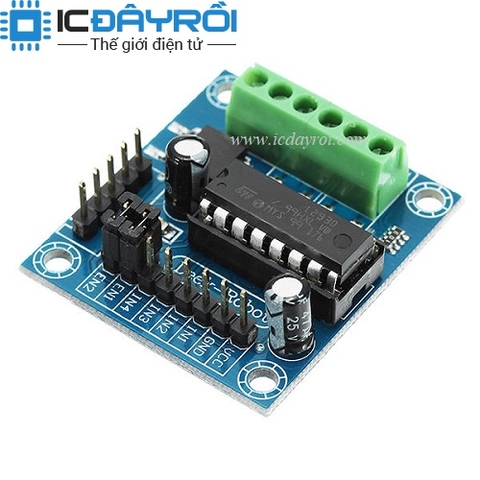

Module điều khiển động cơ L293 mini
28.000₫
Còn hàng
Mô tả :
Overview:
The Device is a mnolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.
To simplify use as...
Overview:
- The Device is a mnolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors.
- To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included.
- This device is suitable for use in switching applications at frequencies up to 5 kHz.
Specification:
- New L293D motor shield, the input voltage DC4.5-25V
- 600mA output current capability per channel
- 1.2A peak output current(non repetitive) per channel
- Enable facility
- Overtemperature protection
- Logical "0" input voltage up to 1.5V(High noise immunity)
- Internal clamp diodes
