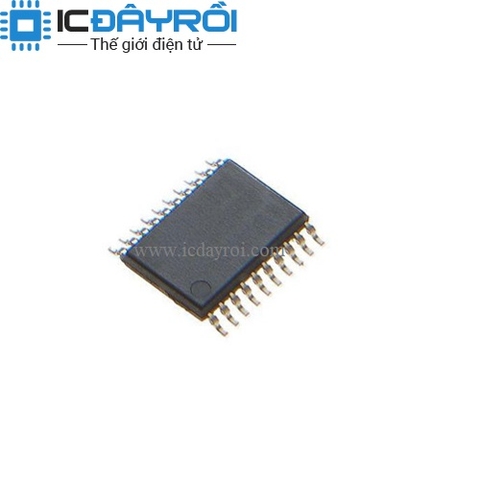

LM5118MHX
35.000₫
Còn hàng
Mô tả :
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Output Type
Transistor Driver
Function
Step-Down, Step-Up/Step-Down
Output Configuration
Positive
Topology
Buck, Buck-Boost
Number of Outputs
1
Output Phases
1
Voltage - Supply (Vcc/Vdd)
3V ~ 75V
Frequency - Switching
200kHz, 515kHz
Duty Cycle (Max)
80%
Synchronous Rectifier
No
Clock Sync
Yes
Serial Interfaces
-
Control Features
Enable, Frequency Control, Ramp, Soft Start
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package...
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Active |
|
|
Output Type |
Transistor Driver |
|
|
Function |
Step-Down, Step-Up/Step-Down |
|
|
Output Configuration |
Positive |
|
|
Topology |
Buck, Buck-Boost |
|
|
Number of Outputs |
1 |
|
|
Output Phases |
1 |
|
|
Voltage - Supply (Vcc/Vdd) |
3V ~ 75V |
|
|
Frequency - Switching |
200kHz, 515kHz |
|
|
Duty Cycle (Max) |
80% |
|
|
Synchronous Rectifier |
No |
|
|
Clock Sync |
Yes |
|
|
Serial Interfaces |
- |
|
|
Control Features |
Enable, Frequency Control, Ramp, Soft Start |
|
|
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
20-PowerTSSOP (0.173", 4.40mm Width) |
|
|
Supplier Device Package |
20-HTSSOP |
|
|
Base Product Number |
