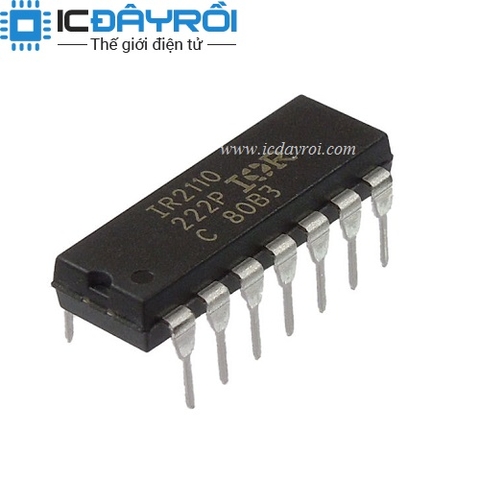

IR2110PBF
28.000₫
Còn hàng
Mô tả :
IC DRIVER HIGH/LOW SIDE 14DIP
Categories
Integrated Circuits (ICs)
PMIC - Gate Drivers
Manufacturer
Infineon Technologies
Series
-
Packaging
Tube
Part Status
Active
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
3.3 V ~ 20 V
Logic Voltage - VIL, VIH
6V, 9.5V
Current - Peak Output (Source, Sink)
2A, 2A
Input Type
Non-Inverting
High Side Voltage...
IC DRIVER HIGH/LOW SIDE 14DIP
| Categories | Integrated Circuits (ICs) | |
|---|---|---|
| PMIC - Gate Drivers | ||
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Voltage - Supply | 3.3 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 6V, 9.5V | |
| Current - Peak Output (Source, Sink) | 2A, 2A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 500V | |
| Rise / Fall Time (Typ) | 25ns, 17ns | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 14-DIP | |
| Base Part Number | IR2110PBF |
