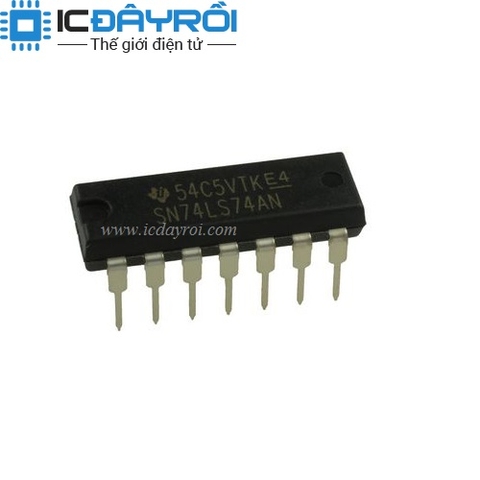

SN74LS74AN
7.000₫
Còn hàng
Mô tả :
IC FF D-TYPE DUAL 1BIT 14DIP
Categories
Integrated Circuits (ICs)
Logic - Flip Flops
Manufacturer
Texas Instruments
Series
74LS
Packaging
Tube
Part Status
Active
Function
Set(Preset) and Reset
Type
D-Type
Output Type
Differential
Number of Elements
2
Number of Bits per Element
1
Clock Frequency
33MHz
Max Propagation Delay @ V, Max CL
25ns @ 2.5V, 15pF
Trigger Type
Positive Edge
Current - Output High, Low
400µA, 8mA
Voltage -...
IC FF D-TYPE DUAL 1BIT 14DIP
| Categories | Integrated Circuits (ICs) | |
|---|---|---|
| Logic - Flip Flops | ||
| Manufacturer | Texas Instruments | |
| Series | 74LS | |
| Packaging | Tube | |
| Part Status | Active | |
| Function | Set(Preset) and Reset | |
| Type | D-Type | |
| Output Type | Differential | |
| Number of Elements | 2 | |
| Number of Bits per Element | 1 | |
| Clock Frequency | 33MHz | |
| Max Propagation Delay @ V, Max CL | 25ns @ 2.5V, 15pF | |
| Trigger Type | Positive Edge | |
| Current - Output High, Low | 400µA, 8mA | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Quiescent (Iq) | 8mA | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300", 7.62mm) | |
| Base Part Number | 74LS74 |
