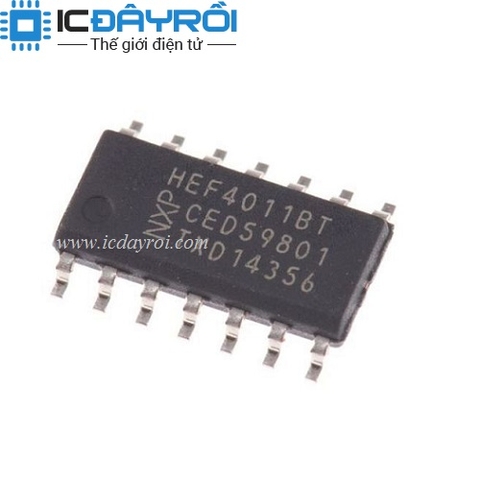

HEF4011BT
3.500₫
Còn hàng
Mô tả :
HEF4011BT SOP-14
Series
4000B
Packaging
Cut Tape (CT)
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
4
Number of Inputs
2
Features
-
Voltage - Supply
3 V ~ 15 V
Current - Quiescent (Max)
1µA
Current - Output High, Low
3.4mA, 3.4mA
Logic Level - Low
1.5 V ~ 4 V
Logic Level - High
3.5 V ~ 11 V
Max Propagation...
HEF4011BT SOP-14
| Series | 4000B | |
|---|---|---|
| Packaging |
Cut Tape (CT) |
|
| Part Status | Active | |
| Logic Type | NAND Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 3 V ~ 15 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 3.4mA, 3.4mA | |
| Logic Level - Low | 1.5 V ~ 4 V | |
| Logic Level - High | 3.5 V ~ 11 V | |
| Max Propagation Delay @ V, Max CL | 35ns @ 15V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-SO | |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | |
| Base Part Number | 4011 |
