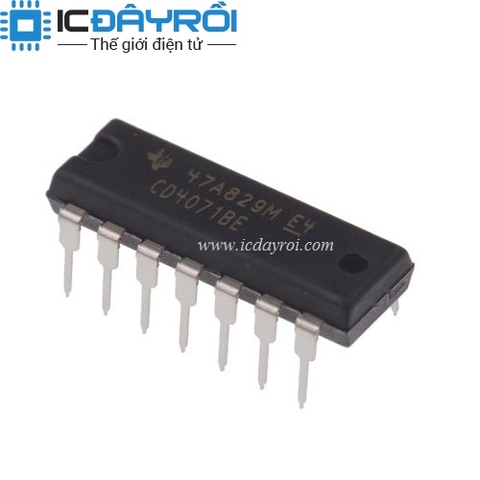

CD4071BE
4.000₫
Còn hàng
Mô tả :
IC GATE OR 4CH 2-INP 14DIP
Categories
Integrated Circuits (ICs)
Logic - Gates and Inverters
Manufacturer
Texas Instruments
Series
4000B
Packaging
Tube
Part Status
Active
Logic Type
OR Gate
Number of Circuits
4
Number of Inputs
2
Features
-
Voltage - Supply
3 V ~ 18 V
Current - Quiescent (Max)
1µA
Current - Output High, Low
3.4mA, 3.4mA
Logic Level - Low
1.5 V ~...
IC GATE OR 4CH 2-INP 14DIP
| Categories | Integrated Circuits (ICs) | |
|---|---|---|
| Logic - Gates and Inverters | ||
| Manufacturer | Texas Instruments | |
| Series | 4000B | |
| Packaging | Tube | |
| Part Status | Active | |
| Logic Type | OR Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 3 V ~ 18 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 3.4mA, 3.4mA | |
| Logic Level - Low | 1.5 V ~ 4 V | |
| Logic Level - High | 3.5 V ~ 11 V | |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Supplier Device Package | 14-PDIP | |
| Package / Case | 14-DIP (0.300", 7.62mm) | |
| Base Part Number | 4071 |
