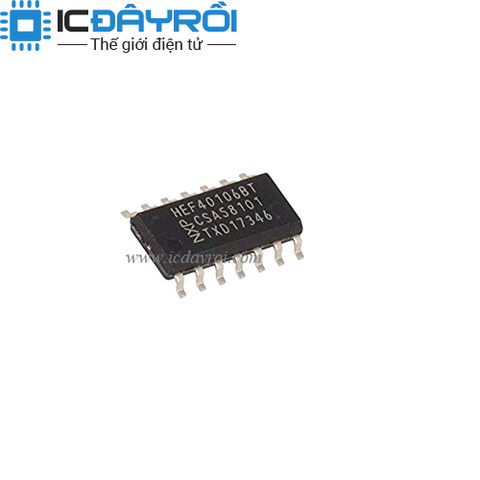

HEF40106BT
4.000₫
Còn hàng
Mô tả :
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Logic Type
Inverter
Number of Inputs
6
Features
Schmitt Trigger
Voltage - Supply
3V ~ 15V
Current - Output High, Low
3.4mA, 3.4mA
Logic Level - Low
1.5V ~ 4V
Logic Level - High
3.5V ~ 11V
Max Propagation Delay @ V, Max CL
60ns @ 15V, 50pF
Operating Temperature
-40°C...
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
|
Part Status |
Active |
|
|
Logic Type |
Inverter |
|
|
Number of Inputs |
6 |
|
|
Features |
Schmitt Trigger |
|
|
Voltage - Supply |
3V ~ 15V |
|
|
Current - Output High, Low |
3.4mA, 3.4mA |
|
|
Logic Level - Low |
1.5V ~ 4V |
|
|
Logic Level - High |
3.5V ~ 11V |
|
|
Max Propagation Delay @ V, Max CL |
60ns @ 15V, 50pF |
|
|
Operating Temperature |
-40°C ~ 125°C |
|
|
Mounting Type |
Surface Mount |
|
|
Supplier Device Package |
14-SO |
|
|
Package / Case |
14-SOIC (0.154", 3.90mm Width) |
|
|
Number of Circuits |
6 |
|
|
Current - Quiescent (Max) |
4 µA |
|
|
Base Product Number |
