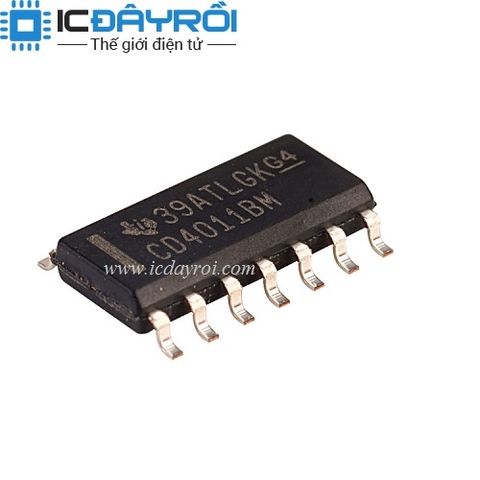

CD4011BM
4.000₫
Còn hàng
Mô tả :
CD4011 CD4011BM SOP14 Cổng NAND
Logic Family
CD4000
Logic Function
NAND
Number of Elements per Chip
4
Number of Element Inputs
2-IN
Number of Output Enables per Element
0
Number of Selection Inputs per Element
0
Number of Element Outputs
1
Maximum Propagation Delay Time @ Maximum CL (ns)
120@10V|250@5V|90@15V
Absolute Propagation Delay Time (ns)
250
Process Technology
CMOS
Maximum Low...
CD4011 CD4011BM SOP14 Cổng NAND
| Logic Family | CD4000 |
| Logic Function | NAND |
| Number of Elements per Chip | 4 |
| Number of Element Inputs | 2-IN |
| Number of Output Enables per Element | 0 |
| Number of Selection Inputs per Element | 0 |
| Number of Element Outputs | 1 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 120@10V|250@5V|90@15V |
| Absolute Propagation Delay Time (ns) | 250 |
| Process Technology | CMOS |
| Maximum Low Level Output Current (mA) | 4.2(Min) |
| Maximum High Level Output Current (mA) | -4.2(Min) |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 12|15|5|3.3|9 |
| Maximum Operating Supply Voltage (V) | 18 |
| Typical Quiescent Current (uA) | 0.02 |
| Maximum Quiescent Current (uA) | 5 |
| Propagation Delay Test Condition (pF) | 50 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Military |
| Packaging | Tube |
| Standard Package Name | SOP |
| Pin Count | 14 |
| Supplier Package | SOIC |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Length | 8.75(Max) |
| Package Width | 4(Max) |
